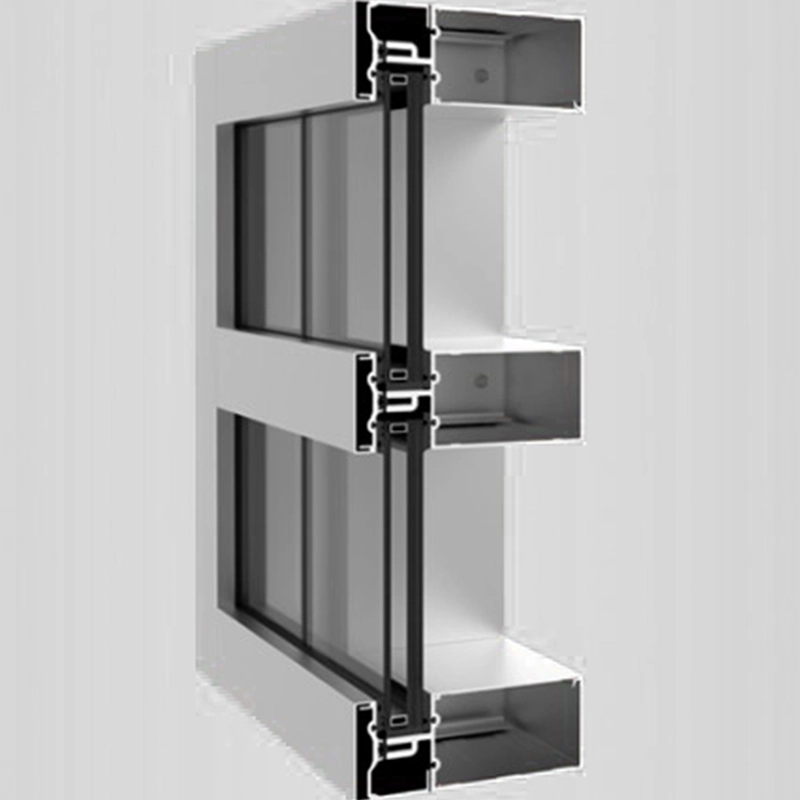

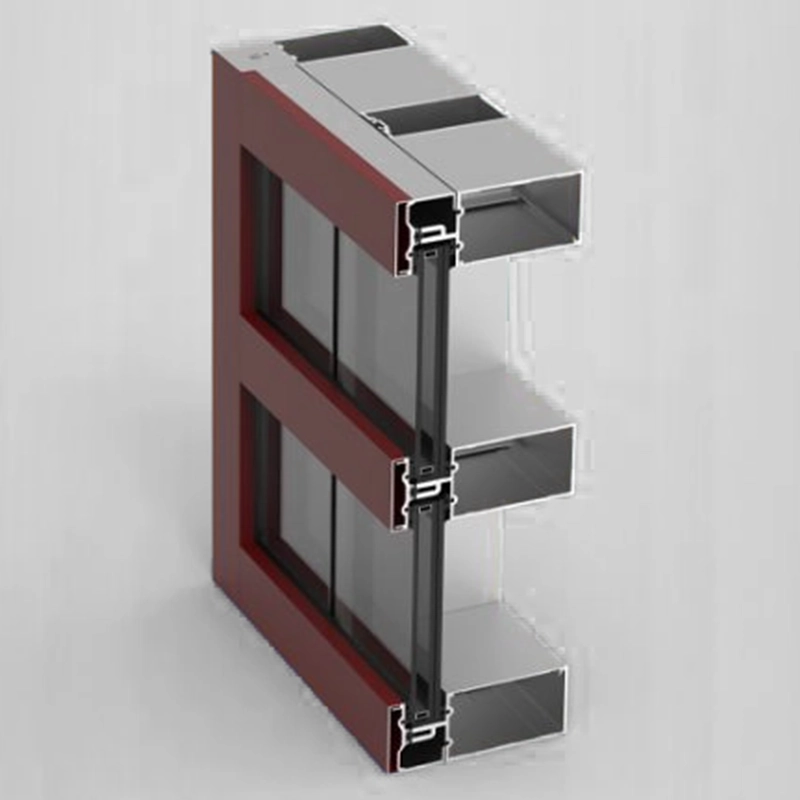

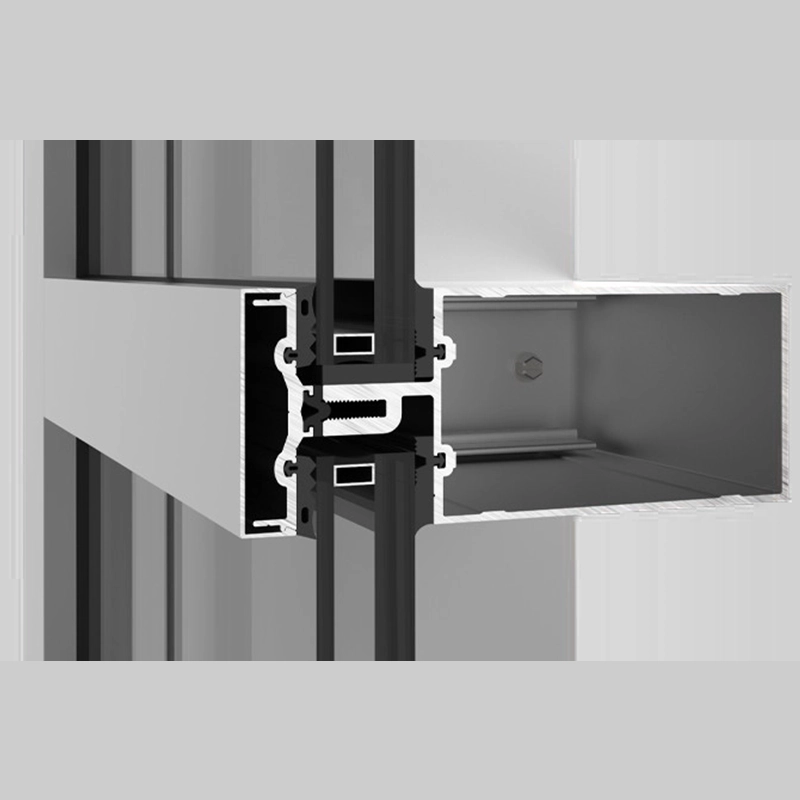

YHC 300 SSG (Structural Silicone Glazed) is a high performance curtain wall system designed and tested to meet the most demanding conditions. With varied infill and components, YHC 300 SSG can meet the requirements for Impact Resistance, Blast Mitigation or both. The system features a 3” wide face dimension to permit the glass engagement necessary for higher design pressures and accommodates 1/4” to 9/16” single glazing or 1” to 1-5/16” insulating glazing. Snap-on face covers enable separate interior/exterior finishes for economic and/or aesthetic reasons. Two piece glass stops reduce costs and improve system performance. YHC 300 SSG allows structural silicone glazing of intermediate vertical members with captured horizontal members.
- Large & Small Missile
- Small Missile – 2 Sides Dry Glazed, 2 Sides Wet Glazed
- Large Missile is Wet Glazed
- ASTM E 1886 / 1996, TAS 201 – 203
- Tested to +/- 90 psf *
- Florida State-Wide Product Approval
- Miami-Dade County Notice of Acceptance
- Blast Mitigation
- Meets UFC 4-010-01 prescriptive standard in accordance with 2007 revisions
- Model 35H – “Low Hazard” per ASTM F 1642 Test @ 6 psi / 41psi-ms
Hurricane Impact / Blast Mitigation / Non-Thermal
- Construction Use: New / Retrofit
- Sightline: 3″
- Mullion Depth: Using Monolithic Glass Infill: 7-1/16″ │ Using Insulating Glass Infill: 7-3/4″
- Framing Installation Method: Shear Block
- Glazing Installation: Outside / Structural
- Glass Type: Monolithic / Insulating
- Glass Configuration: Front
