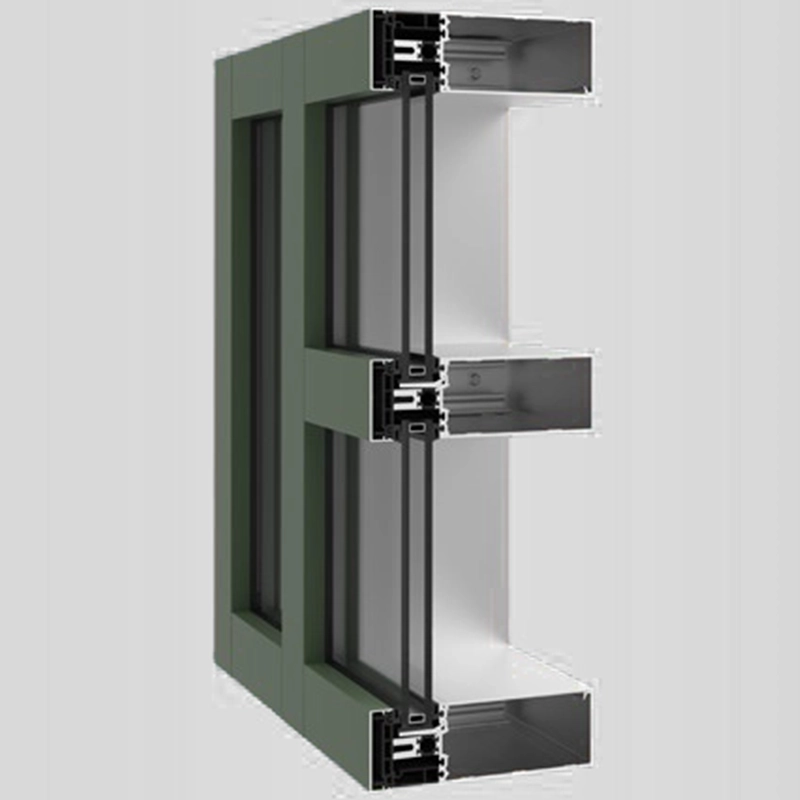

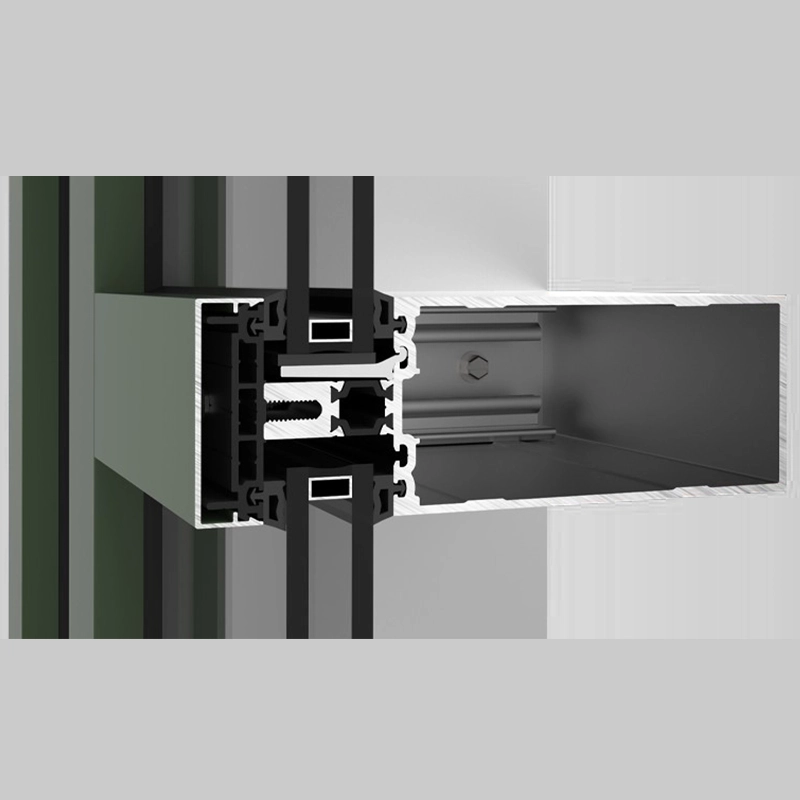

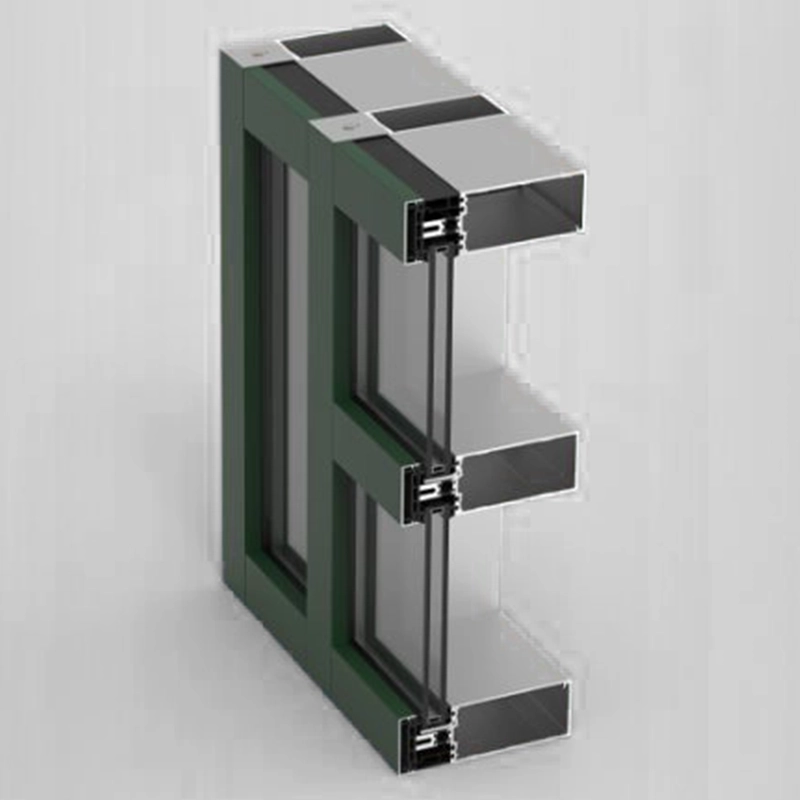

YCW 750 XTP yields best-in-class thermal performance and features polyamide struts. This system exceeds not only current codes, but also exceeds the most stringent green building codes and standards in the market today. YCW 750 XTP not only provides best-in-class performance with YKK AP’s MegaTherm® structural polyamide struts, but adds an additional thermal barrier which increases this curtain wall’s thermal performance.  With the addition of a low conductivity pressure plate made from an industry proven material, Polyamide 6/6, this system exceeds not only current codes, but also exceeds the most stringent green building codes and standards in the market today. The addition of a PVC perimeter flat filler better maintains the thermal performance over traditional aluminum fillers. The polyamide pressure plate is a superior alternative to competitive fiberglass products that require special handling and equipment during fabrication.

  • Outstanding Thermal Performance – three MegaTherm strut widths allow Glazing infills of 1″, 1-1/2″, and 2″ and overall U-factors as low as 0.17
  • Warmer interior surfaces – Increased resistance to condensation, with a CRFf no less than 81
  • Ability to integrate with building’s air-vapor barrier

Advanced Thermal / Thermally Broken

  • Construction Use: New / Retrofit
  • Sightline: 2-1/2″
  • Mullion Depth: with 1″ Glazing: 6″, 7-1/2″, 9″
  • Framing Installation Method: Shear Block
  • Glazing Installation: Outside
  • Glass Type: Insulating
  • Glass Configuration: Front
  • Thermal Method: Iso Struts
