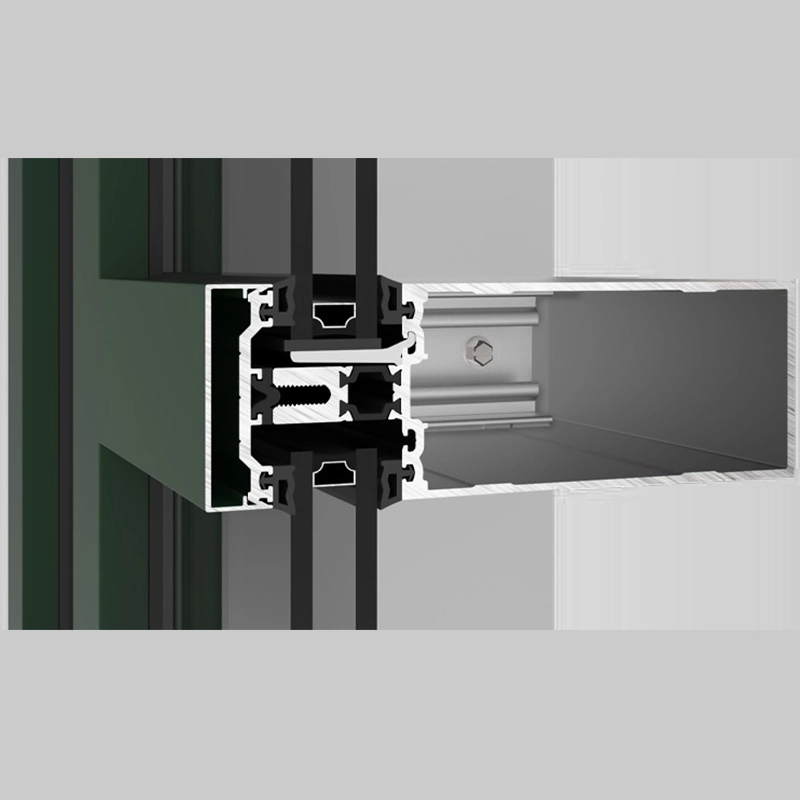

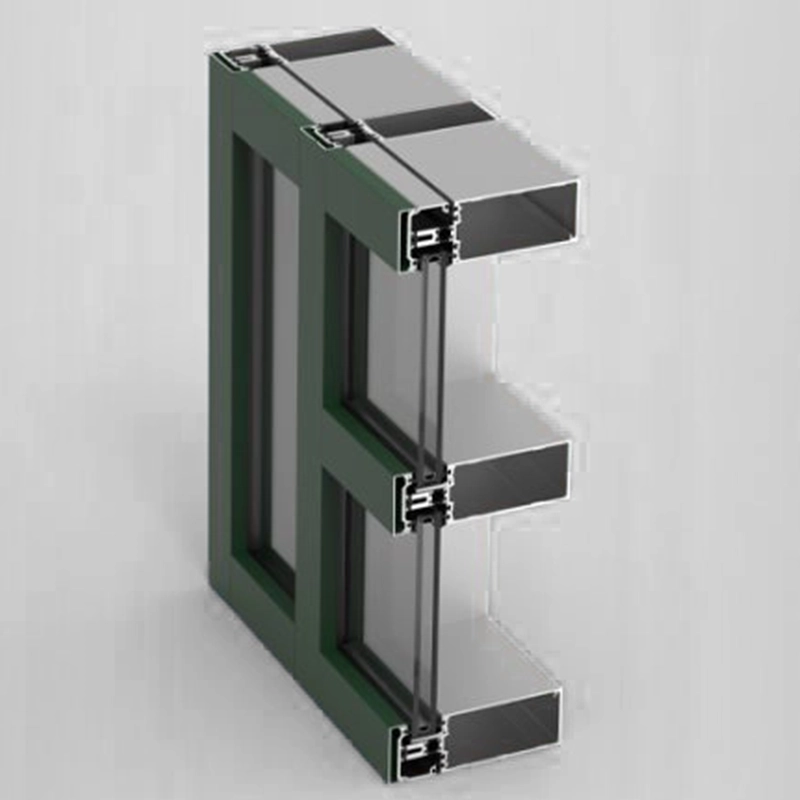

YCW 750 XT yields best-in-class thermal performance and exceeds not only current codes, but also exceeds the most stringent green building codes and standards in the market today. This 2-1/2″ sightline outside glazed curtain wall system utilizes MegaTherm® technology with structural polyamide struts (in 3 widths) that accommodate standard 1″ glazing units as well as advanced glazing options such as triple glazing and suspended film technology.To ensure long-term structural integrity, the dead load of the insulating glass rests on integrated structural supports, diverting this load away from the thermal barriers.

  • Outstanding Thermal Performance – three MegaTherm strut widths allow Glazing infills of 1″, 1-1/2″, and 2″ and overall U-factors as low as 0.17
  • Warmer interior surfaces – Increased resistance to condensation, with a CRFf up to 82
  • Optional integral sill flashing
  • Ability to integrate with building’s air-vapor barrier

Advanced Thermal / Thermally Broken

  • Construction Use: New / Retrofit
  • Sightline: 2-1/2″
  • Mullion Depth: with 1″ Glazing: 6″, 7-1/2″, 9″ │ with 1-1/2″ Glazing: 6-1/2″, 8″, 9-1/2″ │ with 1-3/4″ Glazing: 6-3/4″, 8-1/4″, 9-3/4″ │ with 2″ Glazing: 7″, 8-1/2″, 10″
  • Framing Installation Method: Shear Block
  • Glazing Installation: Outside
  • Glass Type: Insulating
  • Glass Configuration: Front
  • Thermal Method: Iso Struts
