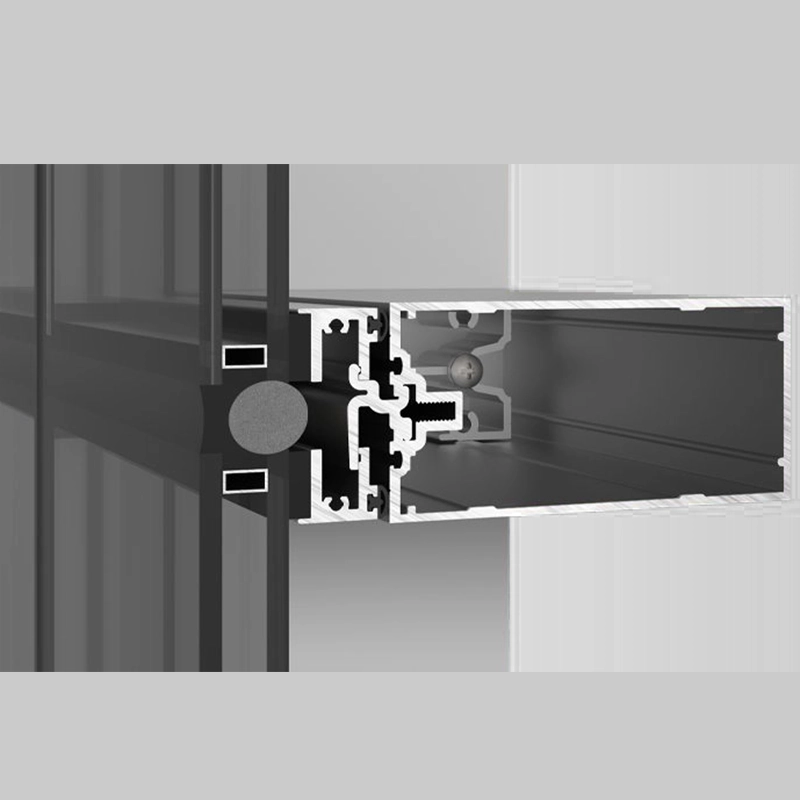

YCW 750 SSG - 2 and 4-Sided Structural Silicone Glazed Curtain Wall System

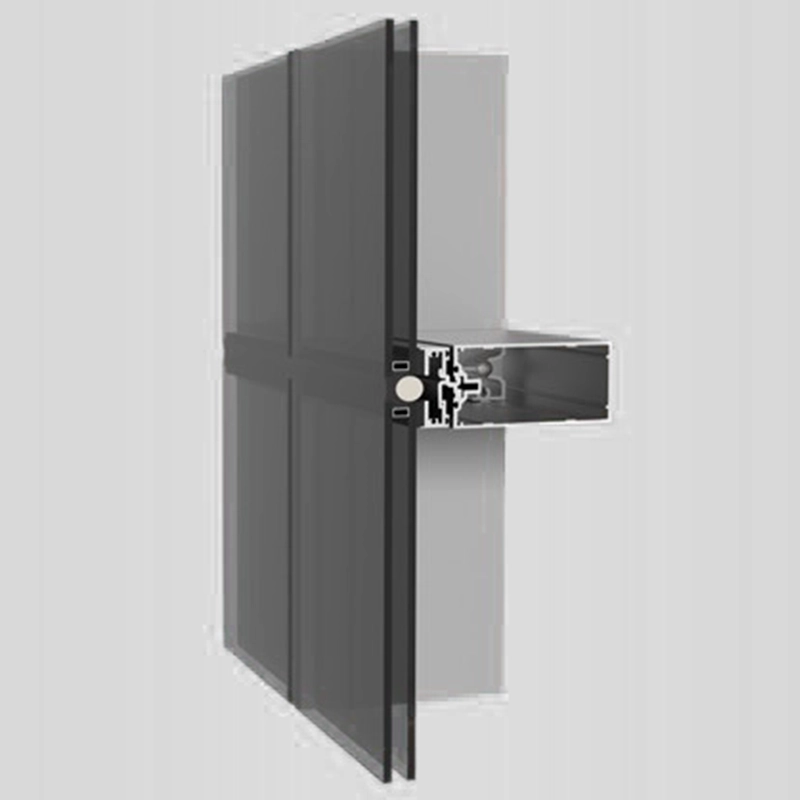

YCW 750 SSG - 2 and 4-Sided Structural Silicone Glazed Curtain Wall System - Image 2

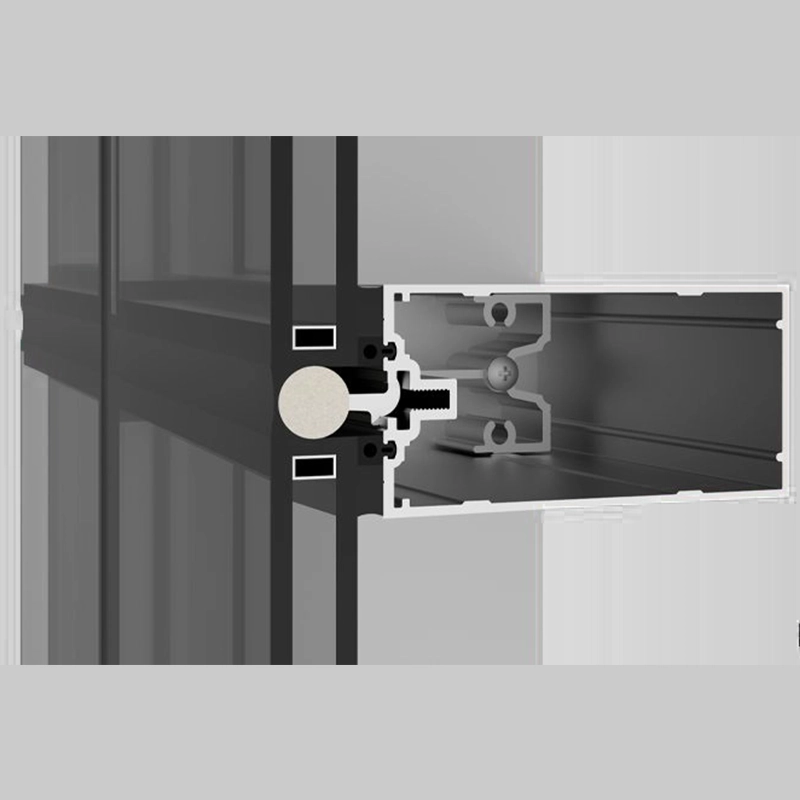

YCW 750 SSG - 2 and 4-Sided Structural Silicone Glazed Curtain Wall System - Image 3

YCW 750 SSG - 2 and 4-Sided Structural Silicone Glazed Curtain Wall System - Image 4

Product Description

The popular YCW 750 family of products has been expanded from 2-sided to include 4-side structural silicone glazing. This stick built system is designed for glazing in a climate controlled environment for increased quality assurance of critical seals. Shop glazed cassettes interlock with integral toggle adapters on horizontals to create full width engagement top and bottom.

Benefits

Versatile Framing Design
- 4-side structural silicone shop glazing
- 2-side or 4-side structural silicone glazed in the field
- 4-Side captured (YCW 750 OG & YCW 750 IG)
- 90° inside and outside corners
- Accommodates splayed wall designs
Structural setting block chairs
Variety of face covers
Dual Finish capability (inside / outside finish)

Features & Information

Non-Thermal

Data Sheet

Construction Use: New / Retrofit
Sightline: 2-1/2″
Mullion Depth: 2-Sided: With 1″ Glass: 6″, 7-1/2″ – With 1/4″ Glass: 5-1/4″, 6-3/4″ | 4-Sided Field: With 1″ Glass: 5-1/16″, 6-9/16″, 8-1/16″, 9-9/16″ | 4-Sided Shop: With 1″ Glass: 5-7/8″, 7-3/8″, 8-7/8″, 9-9/16″
Framing Installation Method: Shear Block
Glazing Installation: Outside / Structural
Glass Type: Monolithic / Insulating
Glass Configuration: Front
