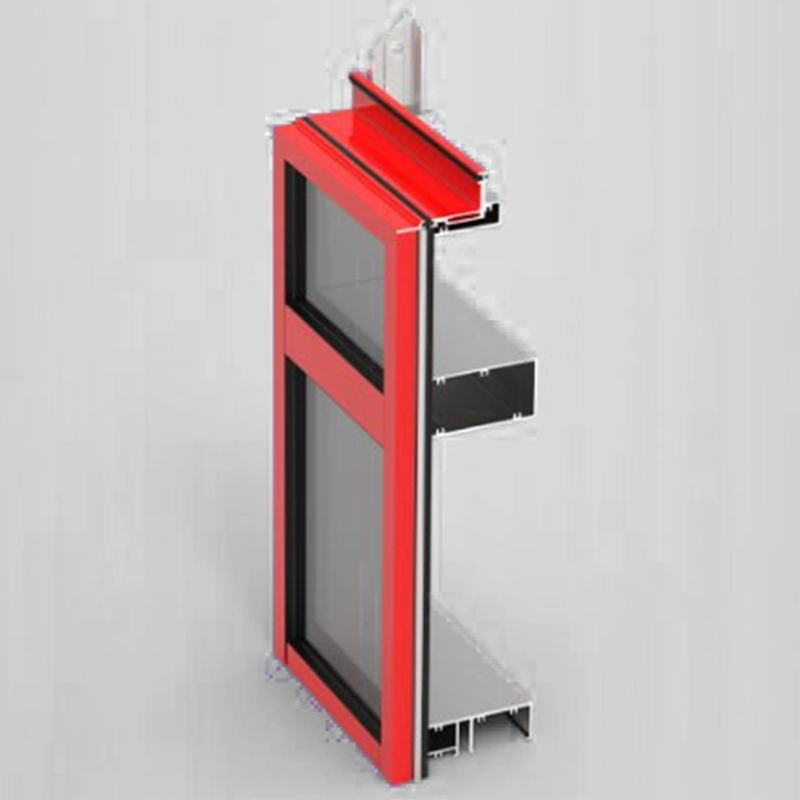

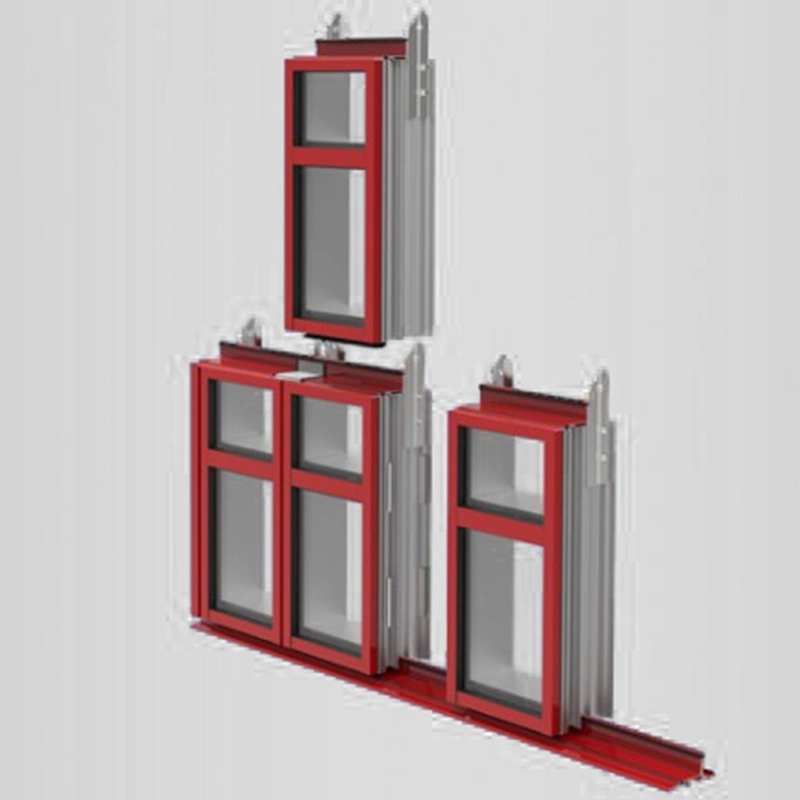

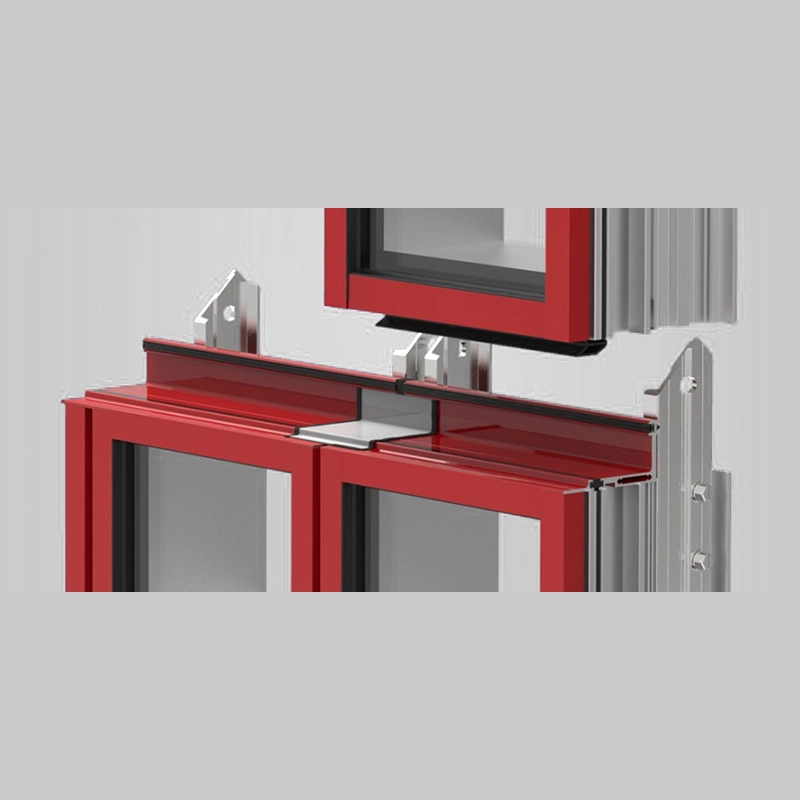

YCU 750 TU - Thermally Broken, Unitized Curtain Wall System
YCU 750 TU - Thermally Broken, Unitized Curtain Wall System - Image 2
YCU 750 TU - Thermally Broken, Unitized Curtain Wall System - Image 3
YCU 750 TU - Thermally Broken, Unitized Curtain Wall System - Image 4

Product Description

A unique, thermally broken, dry glazed 7.5″ unitized curtain wall system designed for maximum flexibility. YCU 750 TU is a unique, thermally broken, dry glazed unitized curtain wall system designed for maximum design flexibility. Drop on adjustable slab and slab edge anchors allow rapid job-site dry-in with reduced field labor. Efficient shop assembly is aided by YKK AP’s screw spline technology.

  • Designed for easy and fast  fabrication – 90 degree cuts and minimal notching
  • Assemble and dry glaze in the shop
  • Less time at the job-site with quick and efficient installation
  • Dual finish option (interior and exterior)
  • 1/4” or 1” infills
  • 90 degree inside and outside corners
  • Optional molded corner gaskets

Unitized/Shop-Glazed / Thermally Broken

  • Construction Use: New / Retrofit
  • Sightline: 3″
  • Mullion Depth: 7.5″
  • Framing Installation Method: Screw Spline
  • Glazing Installation: Outside / Inside
  • Glass Type: Monolithic / Insulating
  • Glass Configuration: Front
