YES 600 - Thermally Broken Front Loading Commercial Storefront System

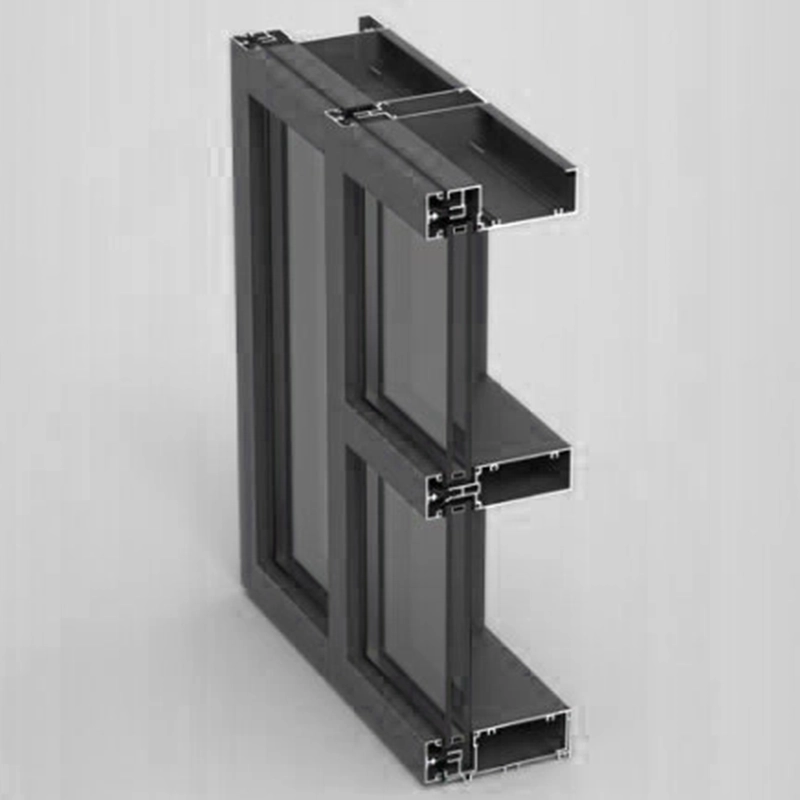

YES 600 - Thermally Broken Front Loading Commercial Storefront System - Image 2
YES 600 - Thermally Broken Front Loading Commercial Storefront System - Image 3

Product Description

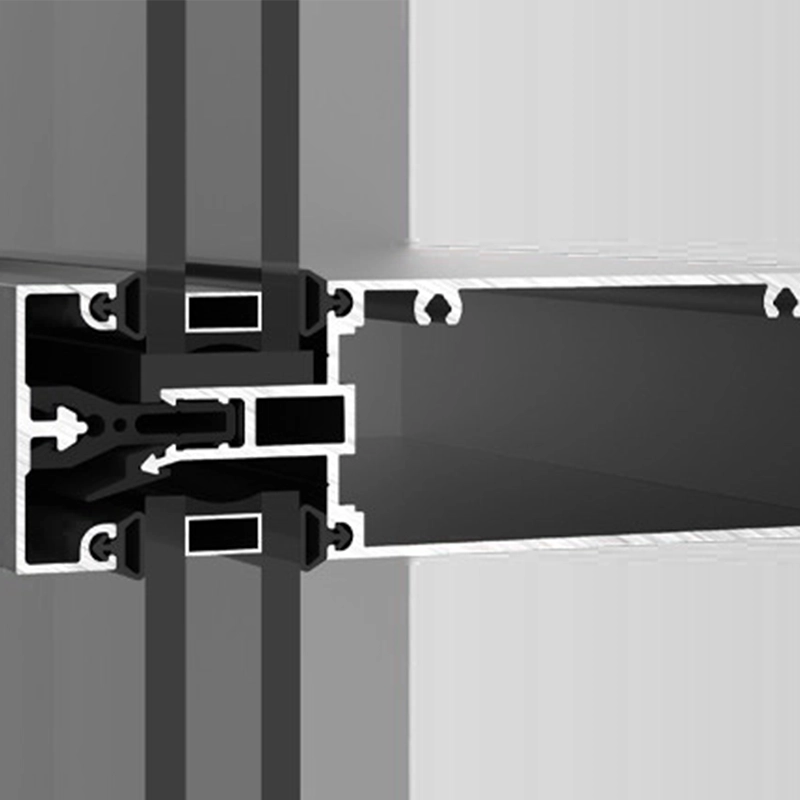

YES 600 is a thermally broken front loaded storefront system for 1″ insulated glass.The system also accepts 1/4” monolithic glass with glazing adaptors. The thermal break is achieved by employing a unique nylon clip that locks the exterior and interior members together. This method of attaching face members also allows separate finishes to be used on the system.

  • 1-3/4” Face by 4-1/2” or 6” Overall Depth
  • Outside Glazed
  • Screw Spline or Shear Block Assembly
  • Nylon Clip Design Eases Installation and Reduces Labor Costs
  • Separate Exterior/Interior Finish Options
  • Integral Entrance Door Frames Entrances

Thermally Improved

  • Construction Use: New / Retrofit
  • Sightline: 1-3/4″
  • Mullion Depth: 4-1/2″, 6″
  • Framing Installation Method: Screw Spline / Shear Block
  • Glass Type: Monolithic / Insulating
  • Thermal Method: Thermal Clips
