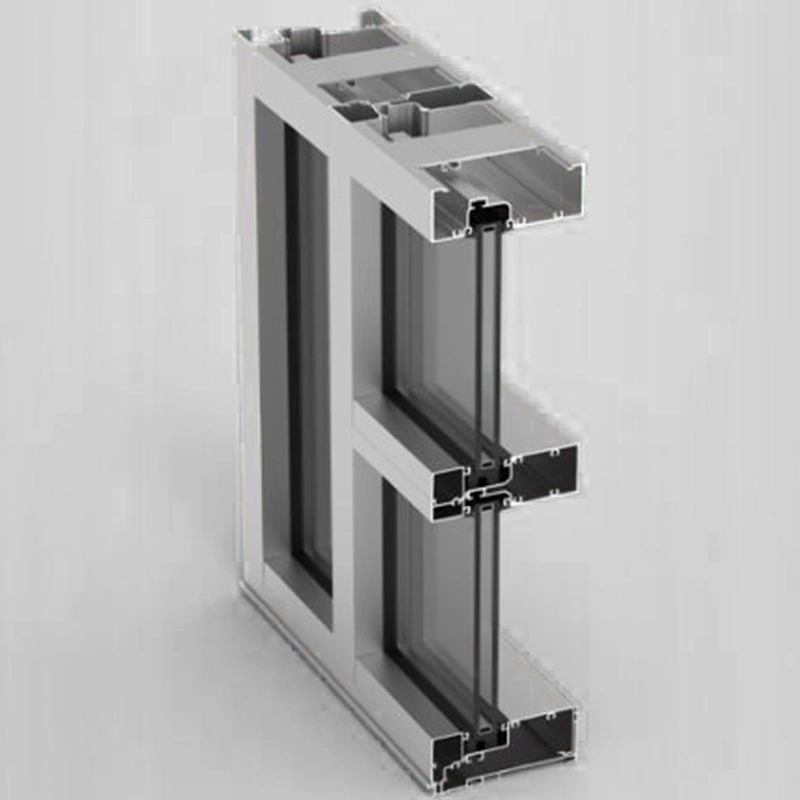

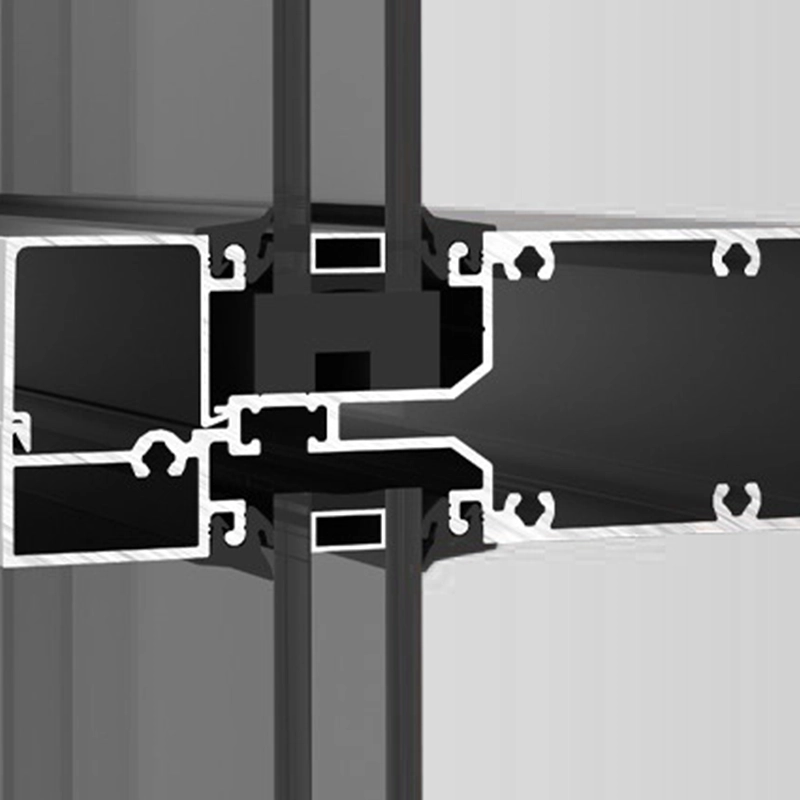

YES 60 FI (2” x 6”) is an offset, flush glazed framing system developed for 1/4″ up to 1” insulating glass and other types of infill panels of varying thicknesses. This 6” non-thermal storefront system can deliver the thermal performance necessary for climate zones 1 and 2 with a 1” low E IGU.  The YES 60 FI is 10% stronger structurally than the TU and XT systems, allowing for the maximum spans both vertically and horizontally. The FI system can glaze a ¼”monolithic glass with a pocket reducer. This system is one of the most flexible storefront design choices on the market today.

  • Outside Glazed
  • Diamond Shaped Screw Spline Assembly
  • High Performance Sill Flashing
  • Integrates with the YES 45 Series Storefront
  • Gasket With Stretch-Resistant Cord
  • Integral Entrance Door Frames
  • Enhanced Water Infiltration Resistance
  • Compatible with ThermaShade and Luminance Sun Control Systems

Non-Thermal

Standard Entrances

  • Model 20D/35D/50D Single Doors up to 4’–0” x 8’–0”
  • Model 20D/35D/50D Pairs up to 8’-0” x 8’-0”
  • Construction Use: New / Retrofit
  • Sightline: 2″
  • Mullion Depth: 6″
  • Framing Installation Method: Screw Spline
  • Glass Type: Insulating
