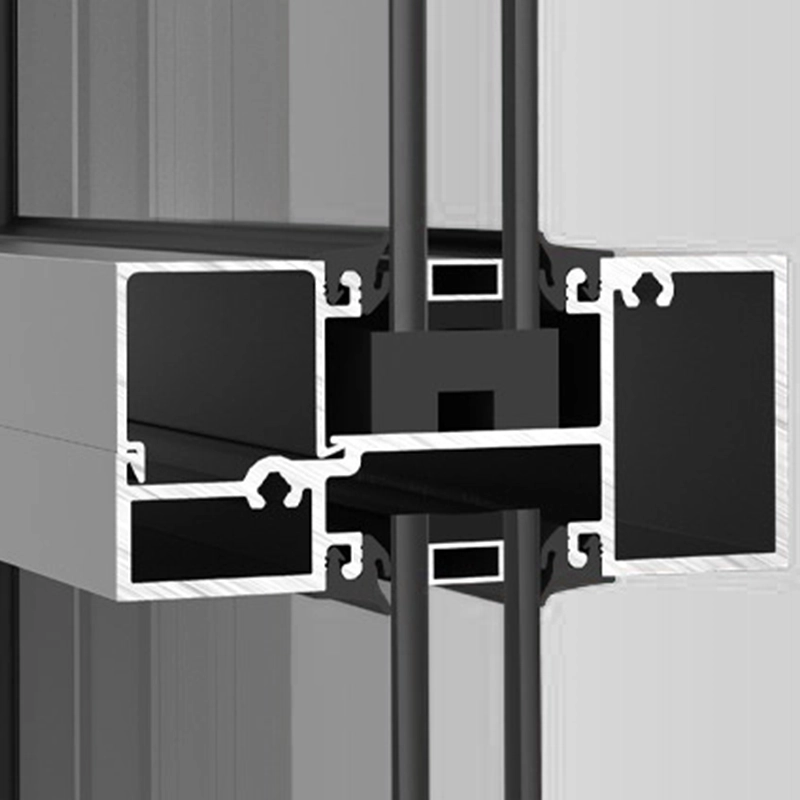

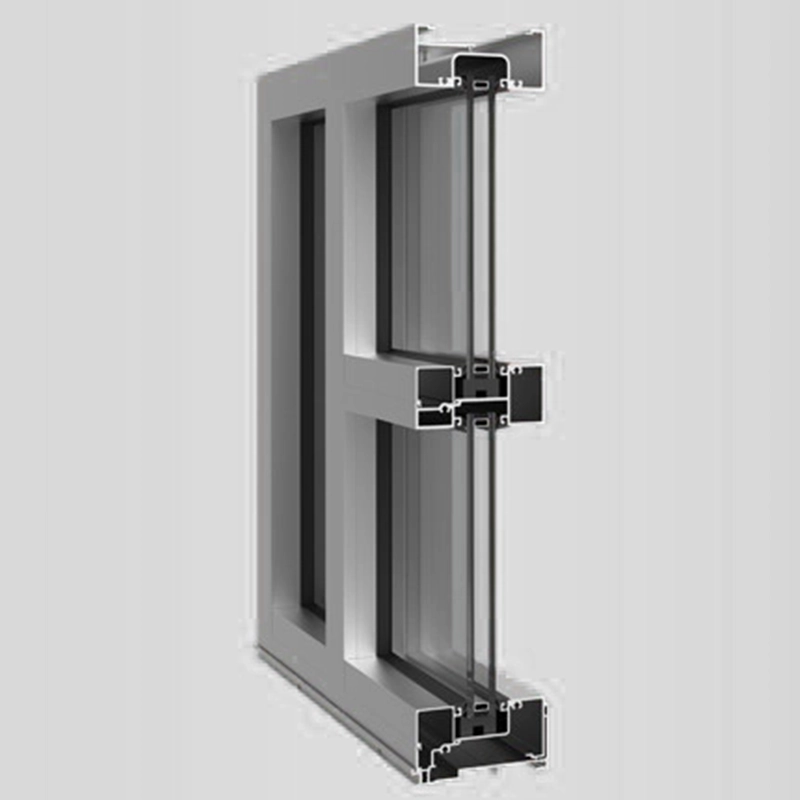

YES 45 FI (2” x 4-1/2”) is a center set, flush glazed framing system developed for 1” insulating glass and other types of infill panels of varying thicknesses.This architectural commercial storefront system will accommodate YKK AP’s hinged mullion, as well as our flexible mullion; these mullions allow more creative freedom where curves and angles become a functional part of the design.

  • Outside or Inside Glazed
  • Screw Spline, Shear Block and Can/Ribbon Assembly
  • Gasket With Stretch-Resistant Cord
  • Integral Entrance Door Frames
  • Enhanced Water Infiltration Resistance

Rapid Building Envelope / Non-Thermal

Standard Entrances

  • Model 20D/35D/50D Single Doors up to 4’–0” x 8’–0”
  • Model 20D/35D/50D Pairs up to 8’-0” x 8’-0”
  • Construction Use: New / Retrofit
  • Sightline: 2″
  • Mullion Depth: 4-1/2″
  • Framing Installation Method: Screw Spline / Shear Block
  • Glass Type: Insulating

Let’s Build Better, Together
