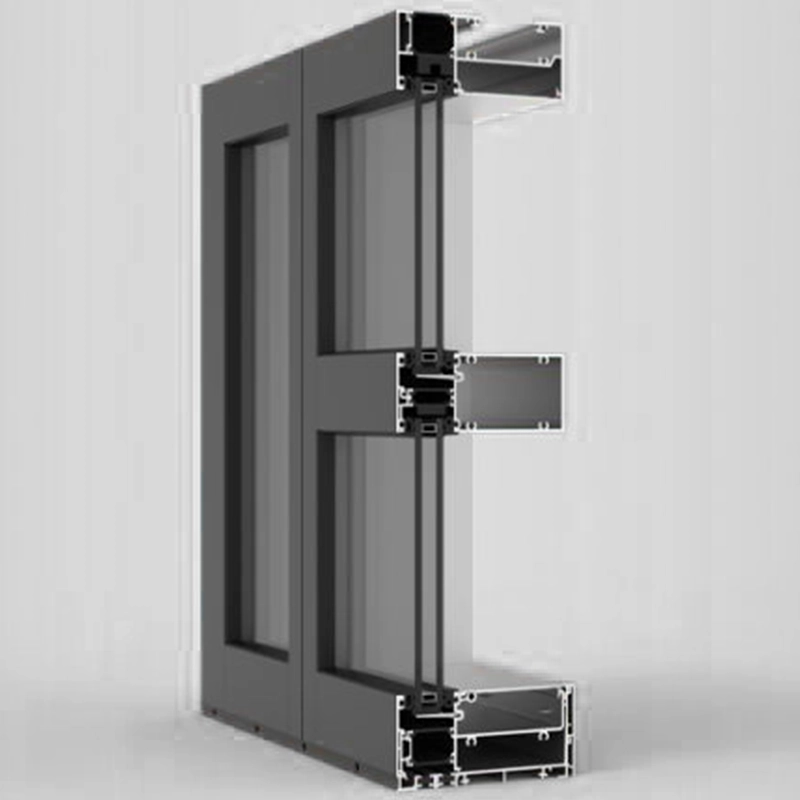

The YWW 60 XT is our 6-in advanced thermal window wall system. It can be inside, outside and structural silicone (SSG) glazed. It also can be pre-glazed through the shop or stick built on the job site. The YWW 60 XT is our 6-in advanced thermal window wall system. It contains 6/6 polyamide struts and ThermaBond® Plus pour and de-bridged urethane on the Sill Flashing and Head Receptors. It can be inside, outside and structural silicone (SSG) glazed. It also can be pre-glazed through the shop or stick built on the job site. I was designed to meet stricter energy codes, particularly in the north central and northeastern parts of the United States. Dual Finish capability is possible, along with a slab edge option with covers. For even stronger thermal performance, foam insulation and 1-5/16″ glass can be added to help keep interior spaces warmer, while keeping the cold outside.

  • Inside (IG), Outside (OG) and Structural Silicone (SSG) glazing options
  • Pre-Glazed (Shop) or Stick Built (Field) installation options
  • 1″ or 1-5/16″ glass
  • Dual Finish capability

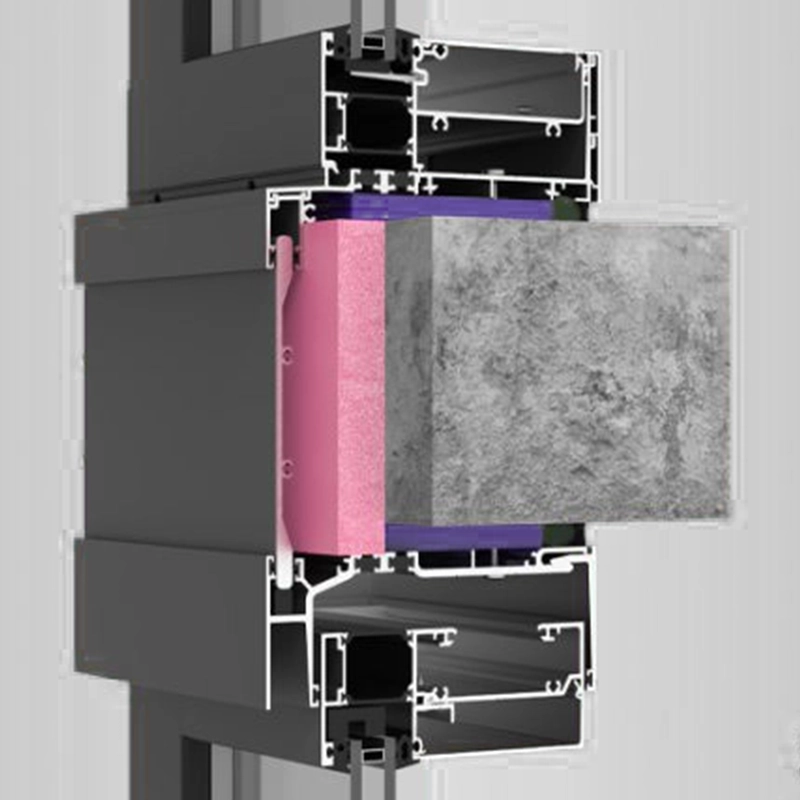

  • Slab Edge option with covers

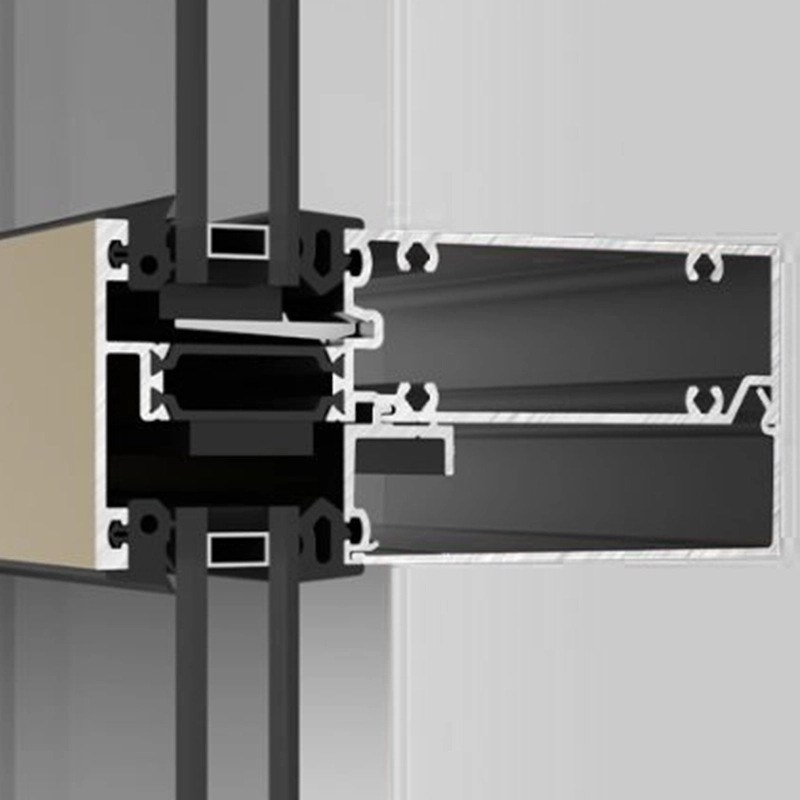

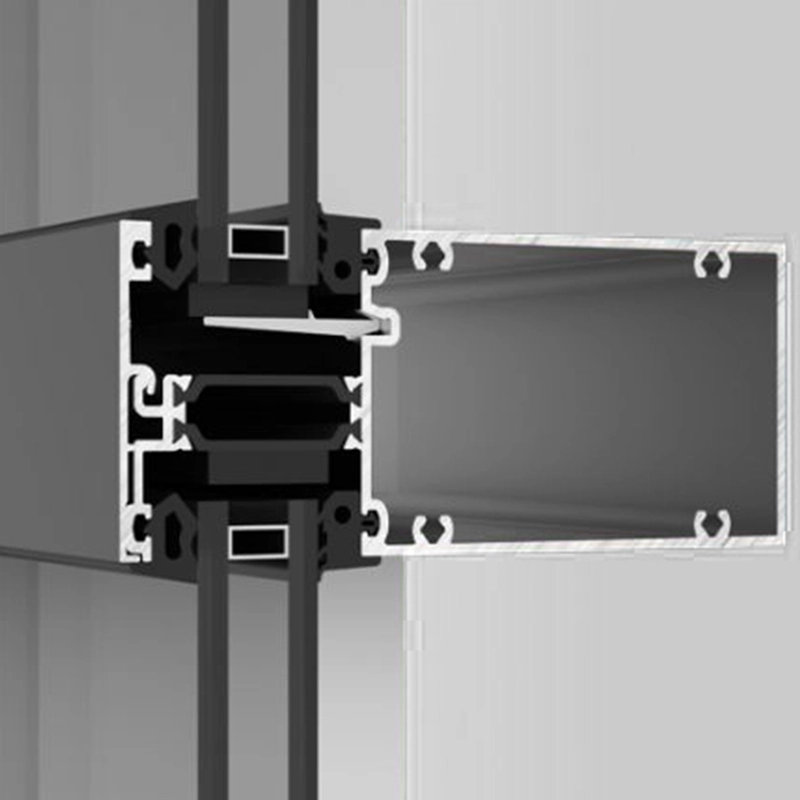

  • Dual polyamide 6/6 struts on mullions
  • Dual ThermaBond Plus® pour and de-bridged urethane on head and sill receptors
  • Extra insulation can be added for even more thermal performance
  • Integrates with other systems in our enerGfacade® advanced thermal product line

Advanced Thermal / Unitized/Shop-Glazed

  • Construction Use: New / Retrofit
  • Sightline: 2-1/2″
  • Mullion Depth: 6″
  • Framing Installation Method: Slab Edge / Vertical Through / Screw Spline / Unitized
  • Glazing Installation: Outside / Inside / Structural
  • Glass Type: Insulating
  • Glass Configuration: Center
  • Thermal Method: Pour and Debridge / Iso Struts
